BRAKE: FRONT BRAKE: INSTALLATION

1. INSTALL DISC BRAKE CYLINDER ASSEMBLY

(a) Install the disc brake cylinder assembly with the 2 bolts.





Torque : 34 Nm (350 kgf-cm, 25 ft-lbf)

(b) Check the installation of the anti-squeal springs.

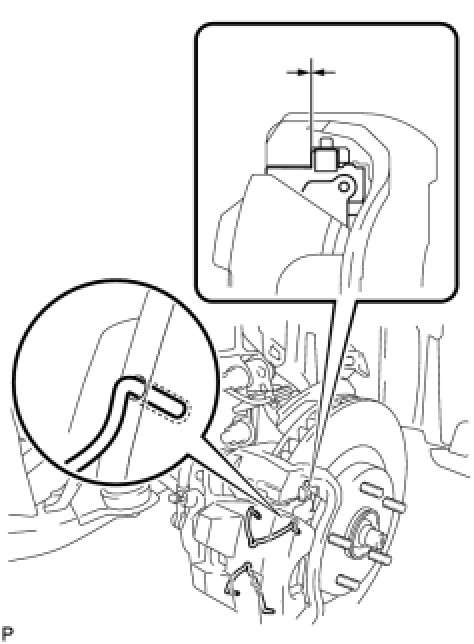

(1) Visually check for any clearance between the brake pad and front disc brake pad support plates as shown in the illustration.

NOTICE:
* If the anti-squeal springs are installed correctly, there will be no clearance between the brake pad and the front disc brake pad support plates. If there is a clearance, the anti-squeal springs may not be installed properly.
* Check all 4 contact surfaces between the brake pad and the front disc brake pad support plates.

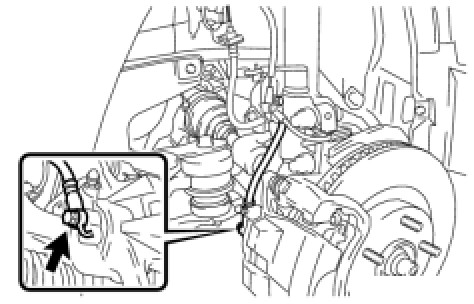

(c) Connect the flexible hose with the union bolt and a new gasket.





NOTICE:
Install the flexible hose lock securely in the lock hole in the disc brake cylinder.

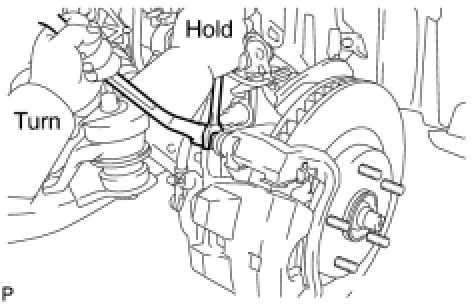

Torque : 29 Nm (300 kgf-cm, 21 ft-lbf)

2. FILL RESERVOIR WITH BRAKE FLUID Service and Repair

3. BLEED BRAKE LINE Service and Repair

4. INSPECT BRAKE FLUID LEVEL IN RESERVOIR Service and Repair

5. INSPECT FOR BRAKE FLUID LEAK

6. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
