Steering System

STEERING COLUMN: STEERING SYSTEM: ON-VEHICLE INSPECTION

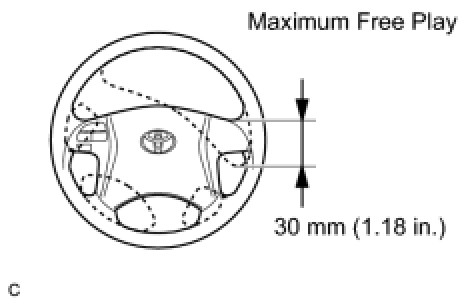

1. INSPECT STEERING WHEEL FREE PLAY

(a) Stop the vehicle and align the tires facing straight ahead.

(b) Gently turn the steering wheel right and left by hand, and check the steering wheel free play.

Maximum free play:

30 mm (1.18 in.)

HINT
If the free play exceeds the maximum, check the steering column, steering intermediate shaft, steering sliding yoke, or steering gear.
