Rear Axle Hub





AXLE: REAR AXLE HUB: ON-VEHICLE INSPECTION

1. REMOVE REAR WHEEL

2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE REAR DISC Disassembly

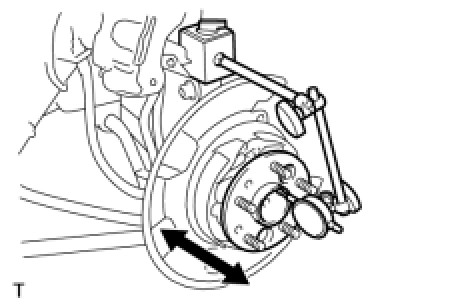

4. INSPECT REAR AXLE HUB BEARING LOOSENESS

(a) Using a dial indicator, check for looseness near the center of the axle hub.





Maximum:

0.05 mm (0.0020 in.)

NOTICE:
Ensure that the dial indicator is set perpendicular to the measurement surface.

If looseness exceeds the maximum, replace the axle hub assembly.

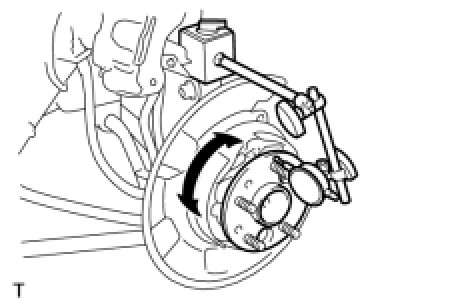

5. INSPECT REAR AXLE HUB RUNOUT

(a) Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.





Maximum:

0.07 mm (0.0027 in.)

NOTICE:
Ensure that the dial indicator is set perpendicular to the measurement surface.

If runout exceeds the maximum, replace the axle hub assembly.

6. INSTALL REAR DISC Reassembly

7. INSTALL REAR DISC BRAKE CALIPER ASSEMBLY Installation

8. INSTALL REAR WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
