Front Axle Hub





AXLE: FRONT AXLE HUB: ON-VEHICLE INSPECTION

1. REMOVE FRONT WHEEL

2. SEPARATE FRONT DISC BRAKE CALIPER ASSEMBLY Removal

3. REMOVE FRONT DISC Disassembly

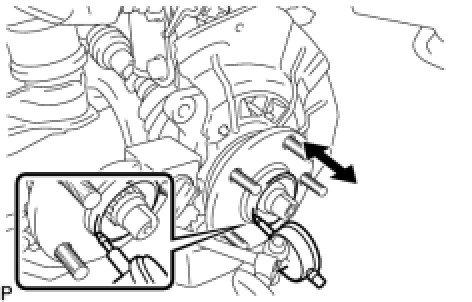

4. INSPECT FRONT AXLE HUB BEARING LOOSENESS

(a) Using a dial indicator, check for looseness near the center of the axle hub.





Maximum:

0.05 mm (0.0020 in.)

NOTICE:
Ensure that the dial indicator is set perpendicular to the measurement surface.

HINT
If looseness exceeds the maximum, replace the bearing.

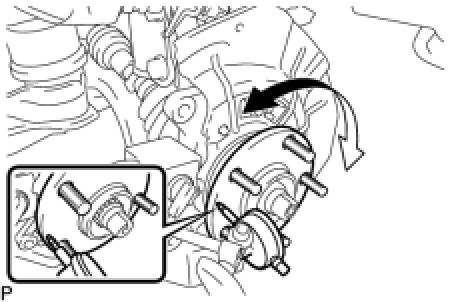

5. INSPECT FRONT AXLE HUB RUNOUT

(a) Using a dial indicator, check for runout on the surface of the axle hub outside the hub bolt.





Maximum:

0.05 mm (0.0020 in.)

NOTICE:
Ensure that the dial indicator is set perpendicular to the measurement surface.

HINT
If runout exceeds the maximum, replace the axle hub.

6. INSTALL FRONT DISC Reassembly

7. INSTALL FRONT DISC BRAKE CALIPER ASSEMBLY Installation

8. INSTALL FRONT WHEEL

Torque : 103 Nm (1,050 kgf-cm, 76 ft-lbf)
