Pinout Values and Diagnostic Parameters

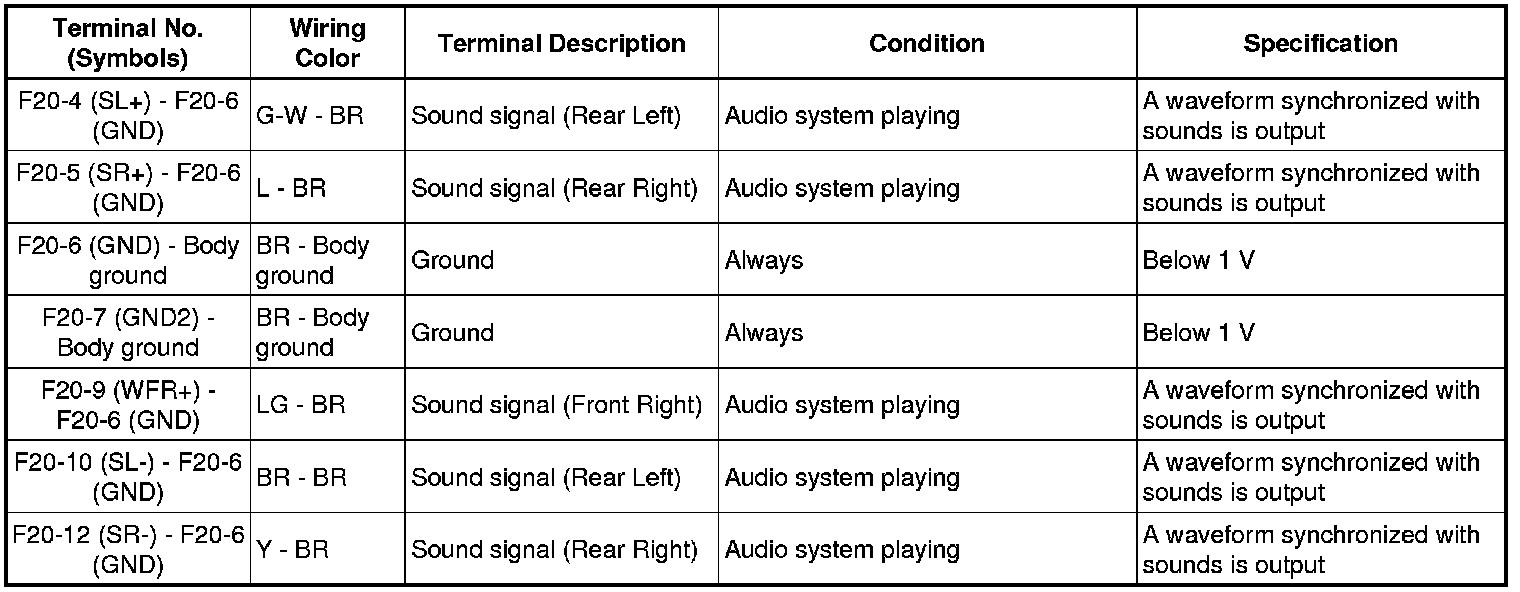

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: TERMINALS OF ECU 1.

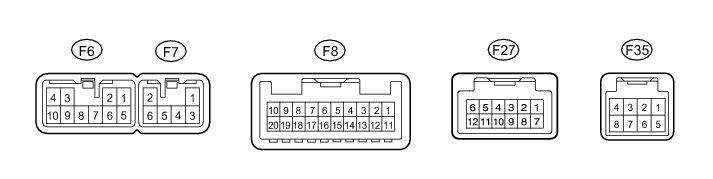

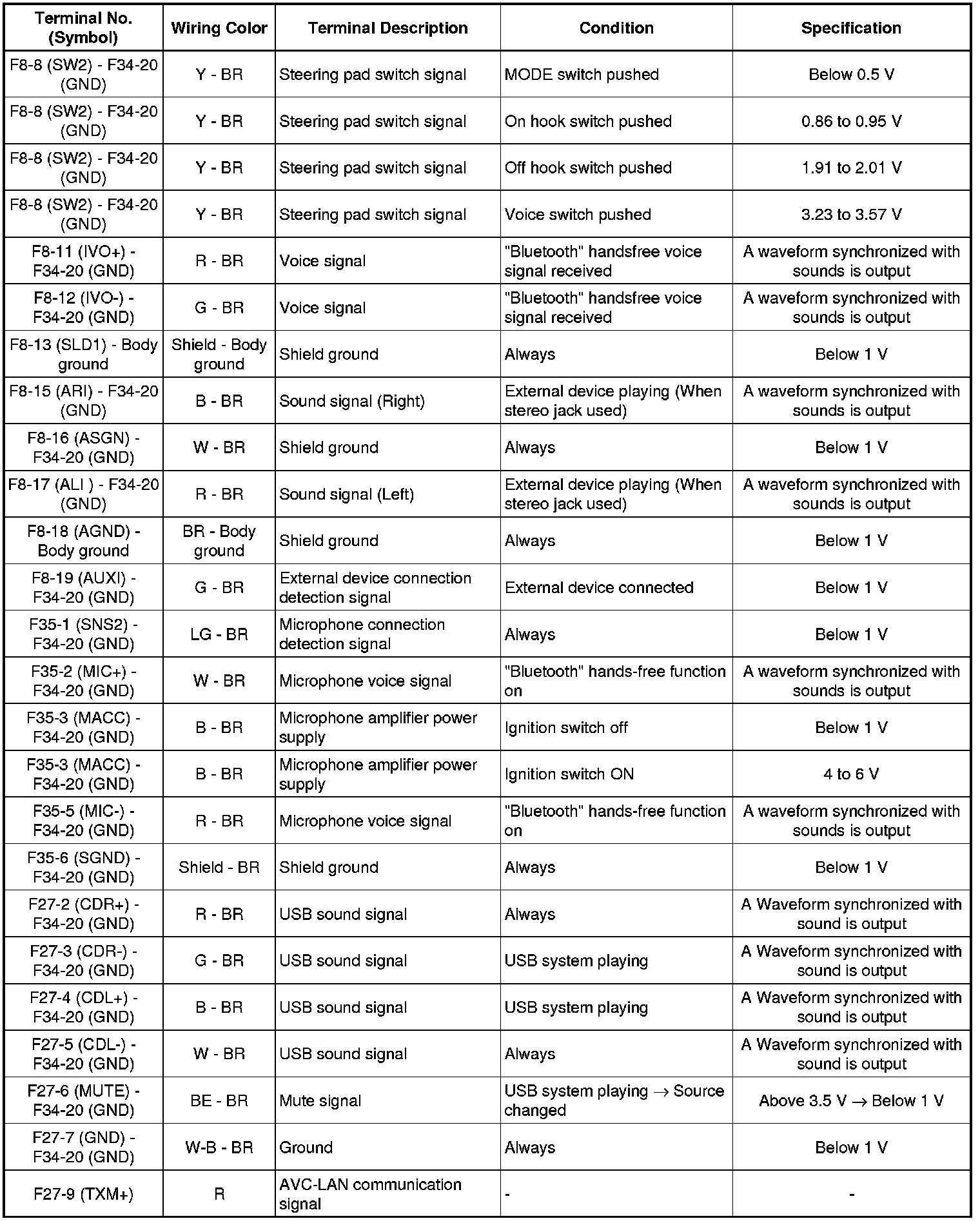

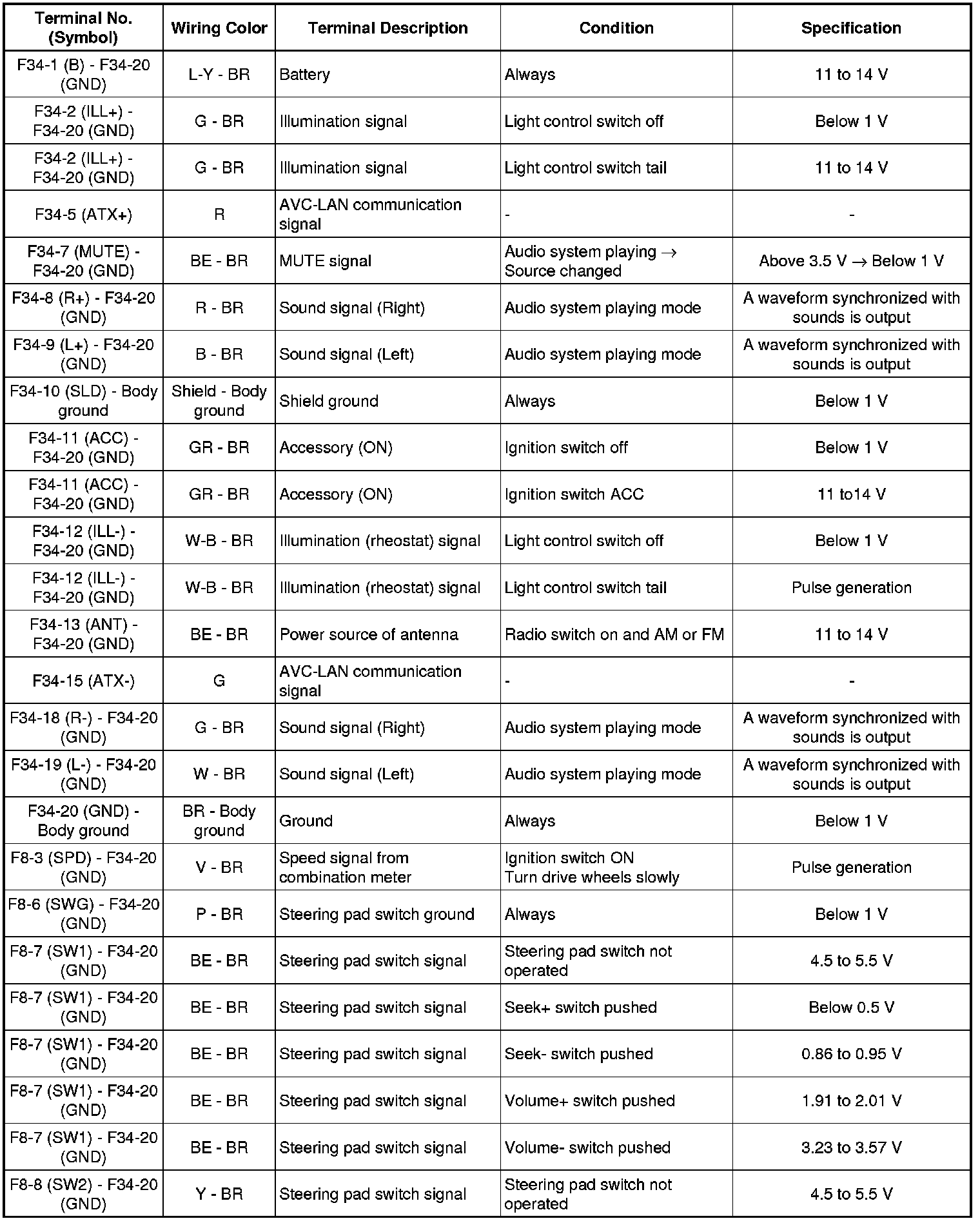

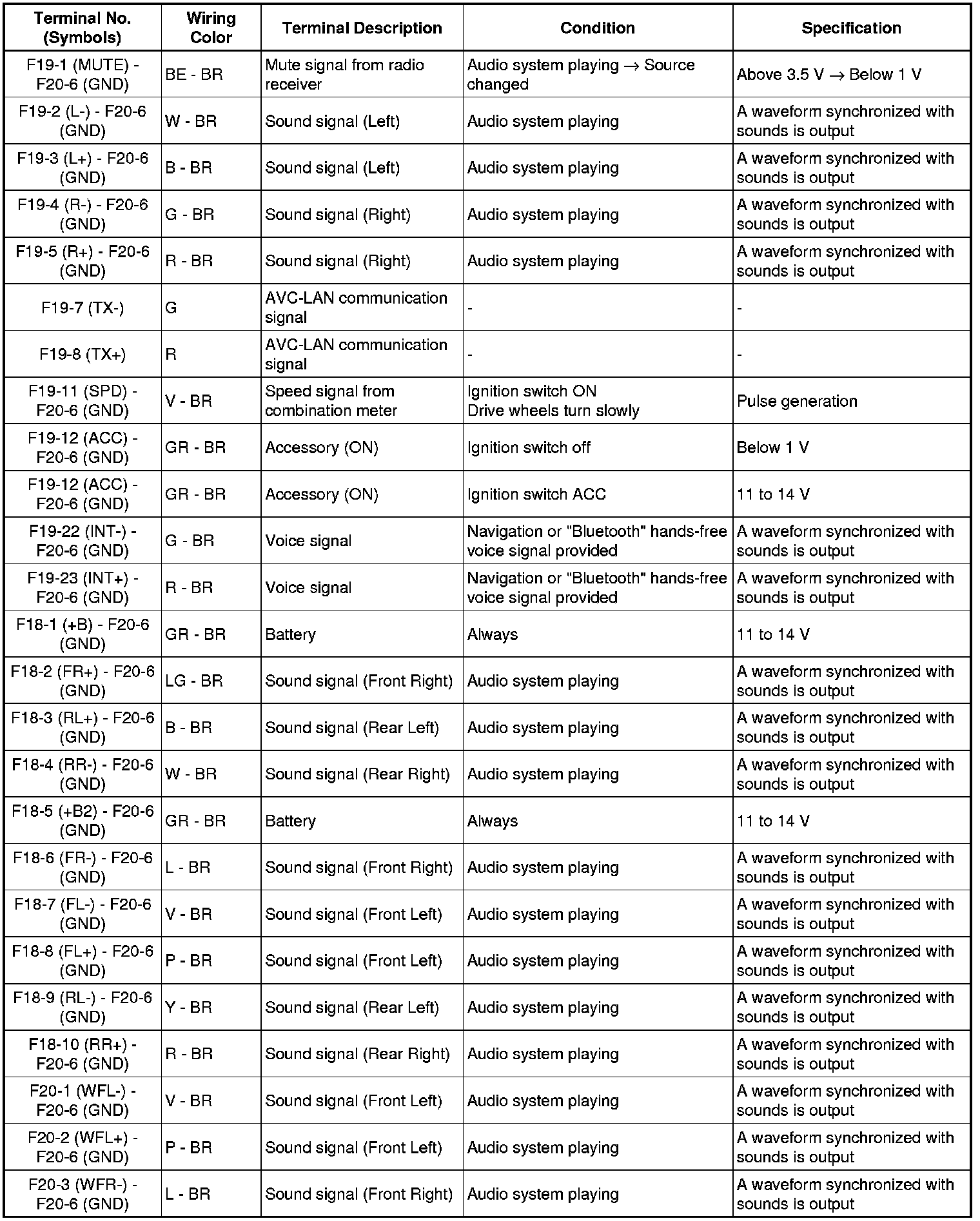

RADIO RECEIVER (for 8 Speakers)
2.

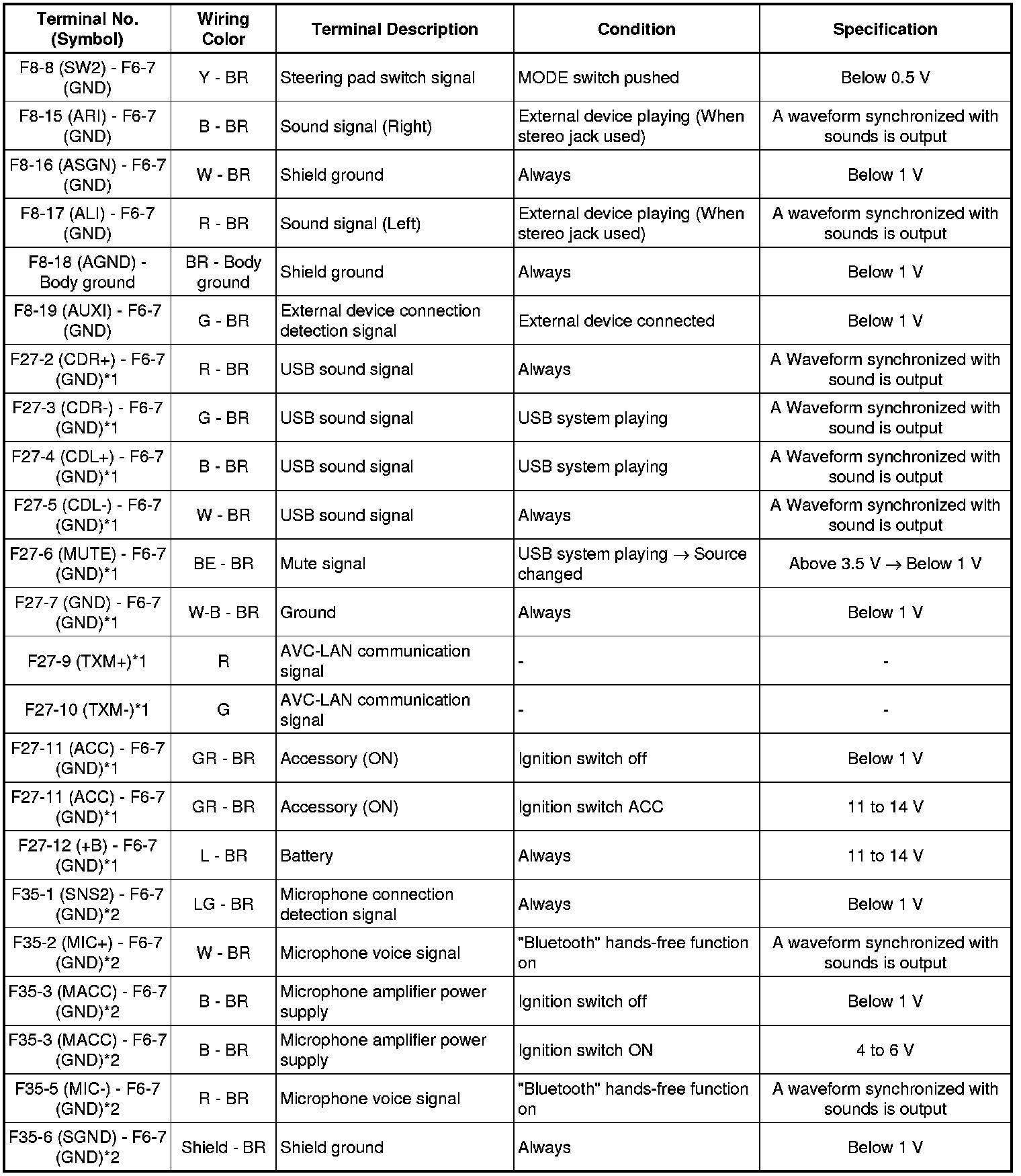

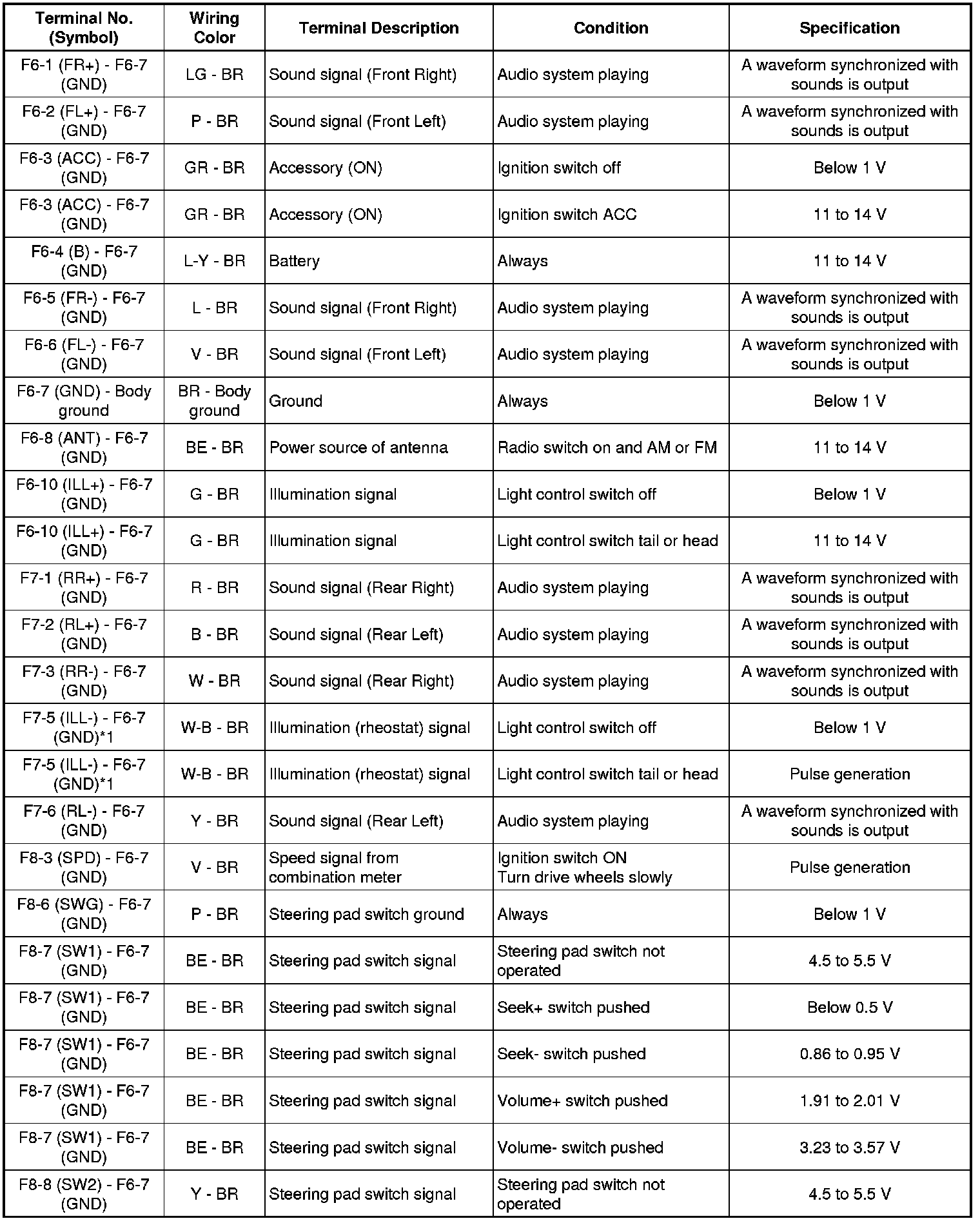

RADIO RECEIVER (for 6 Speakers)
*
*1: w/ USB Audio System
*
*2: w/ Microphone
3.

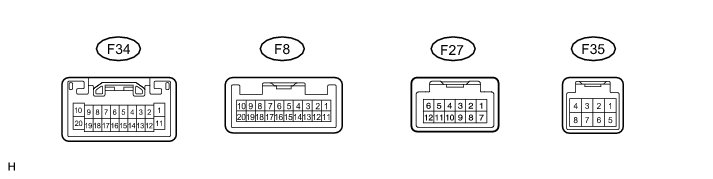

STEREO COMPONENT

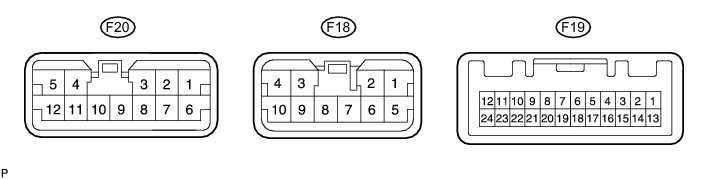

AMPLIFIER (for 8 Speakers)
4.

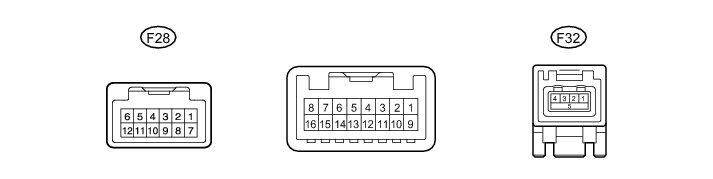

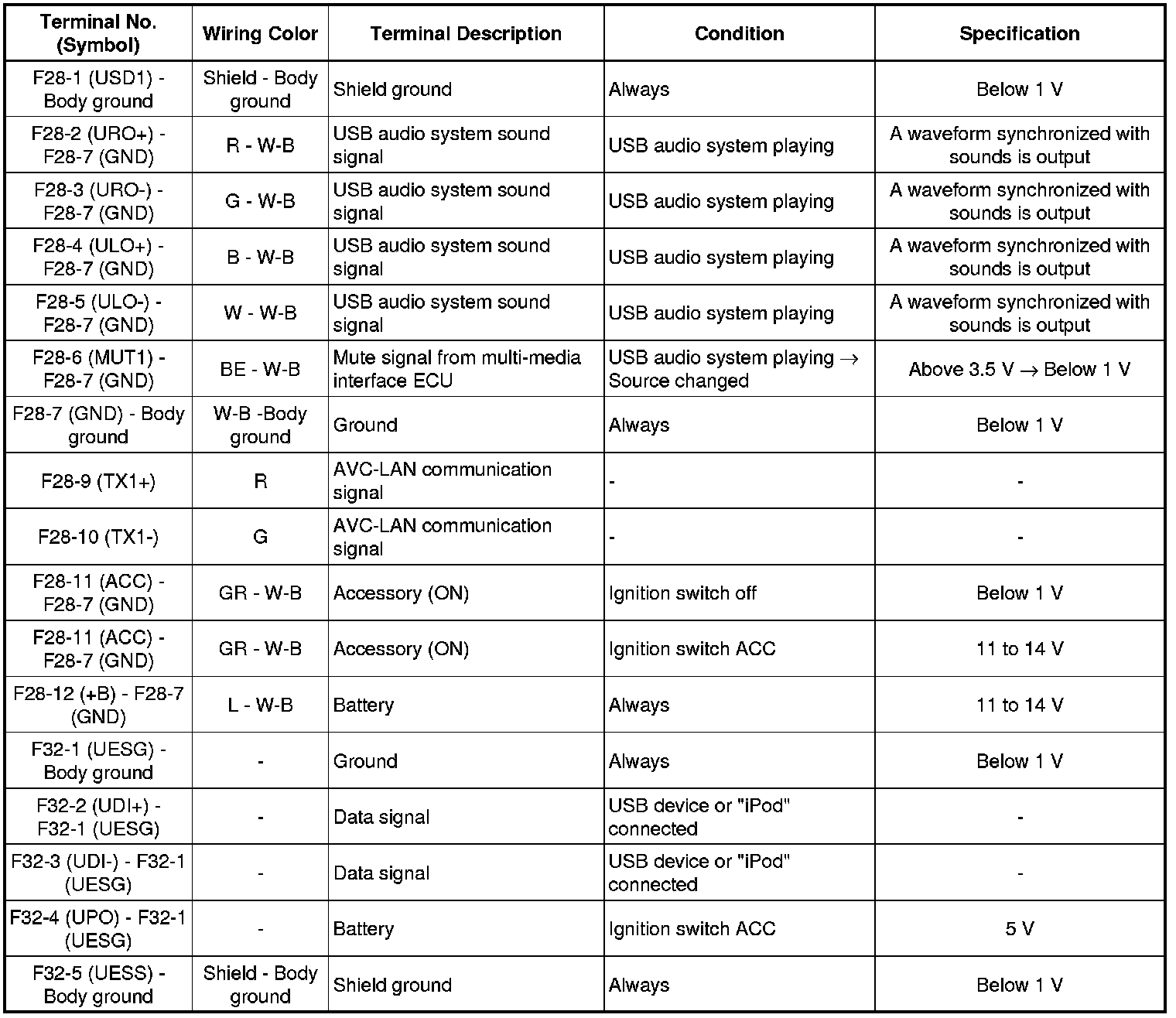

MULTI-MEDIA INTERFACE ECU (w/ USB Audio System)
