Disassembly





SEAT: REAR SEAT ASSEMBLY (for Reclining Seat Type): DISASSEMBLY

1. REMOVE REAR BENCH TYPE SEAT CUSHION COVER

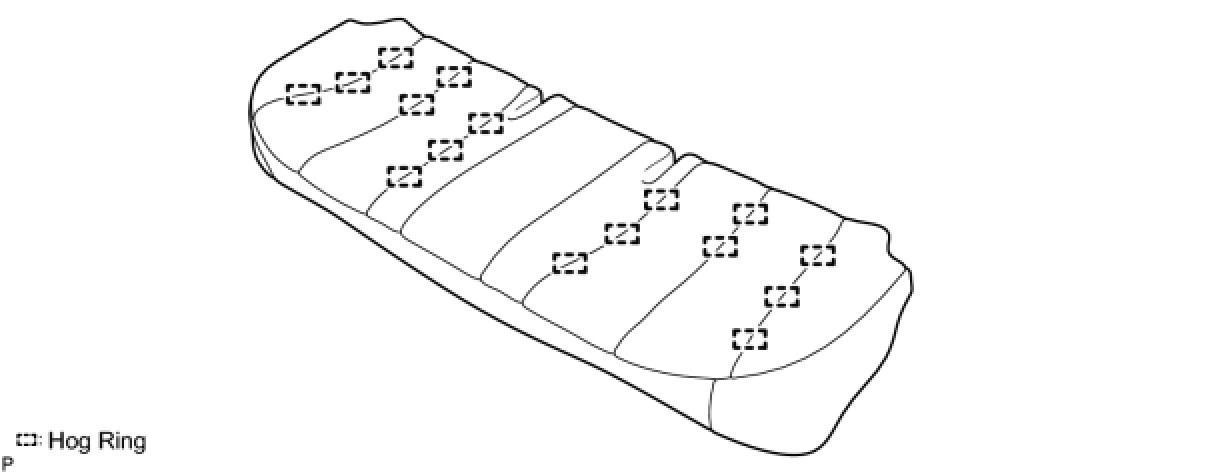

(a) Remove the 36 hog rings.

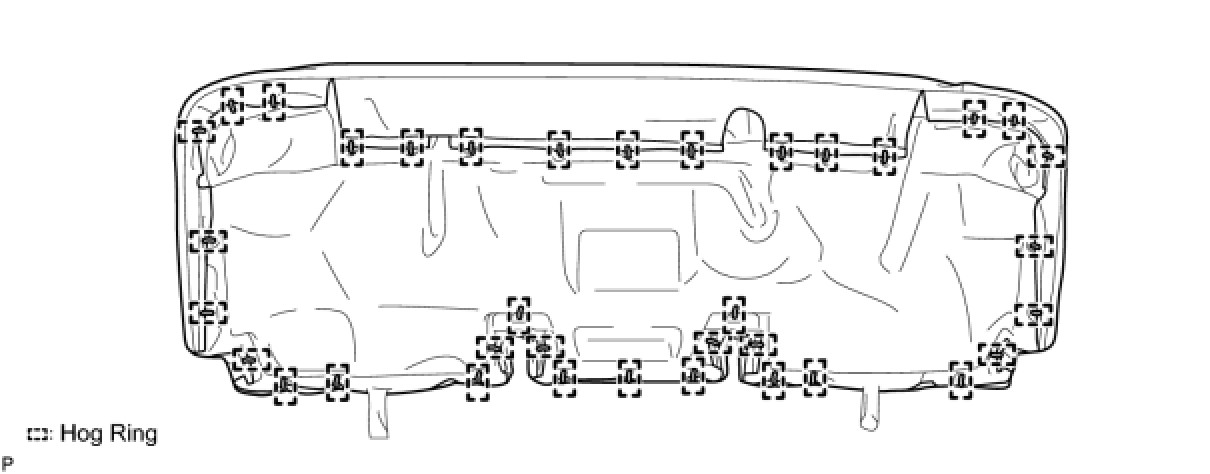

(b) Remove the 16 hog rings and rear bench type seat cushion cover.





2. REMOVE REAR SEAT SHOULDER BELT GUIDE LH

(a) Remove the 4 screws and 2 rear seat shoulder belt guides LH.





3. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

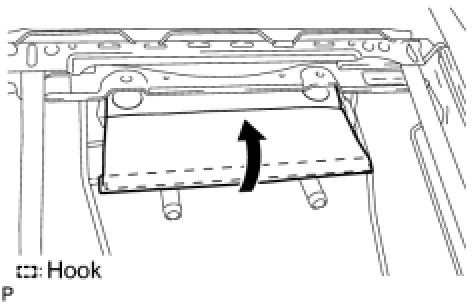

(a) Disengage the hook.





(b) Disengage the 2 claws and remove the rear seat headrest support.





4. REMOVE REAR SEAT HEADREST SUPPORT (for LH Side)

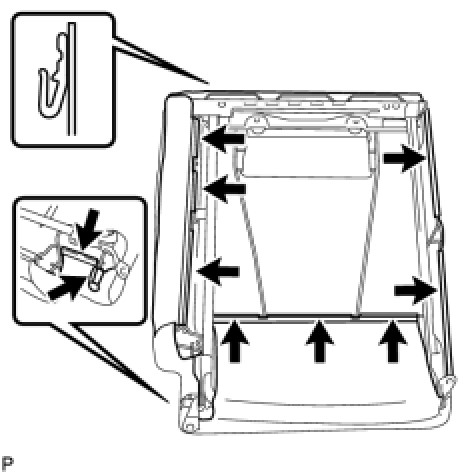

5. REMOVE REAR SEPARATE TYPE SEAT BACK COVER

(a) Disengage the hooks and remove the rear seat back assembly.

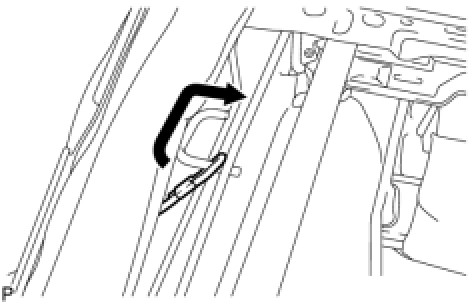

(b) Remove the rear seat belt hook.





(c) Remove the rear separate type seat back cover.

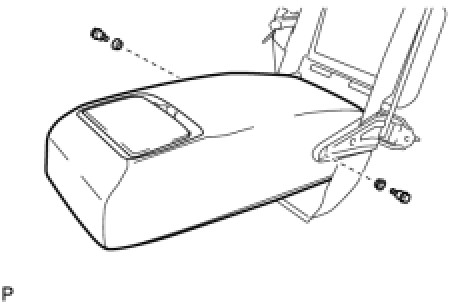

6. REMOVE REAR CENTER SEAT ARMREST ASSEMBLY

(a) Remove the 2 bolts and 2 bushes.





(b) Remove the rear center seat armrest assembly.

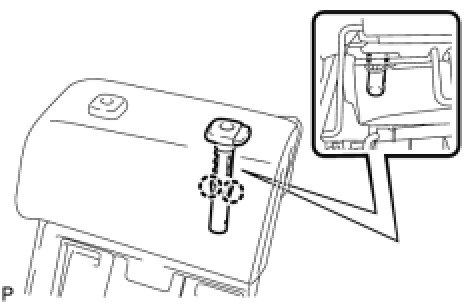

7. REMOVE REAR SEAT HEADREST SUPPORT

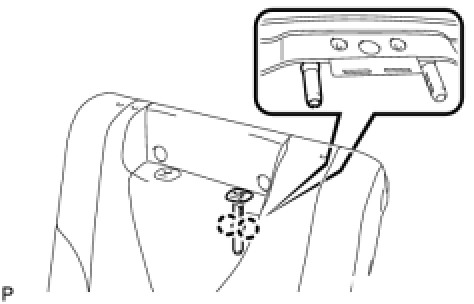

(a) Disengage the 2 claws and remove the rear seat headrest support.





8. REMOVE REAR SEAT HEADREST SUPPORT

HINT
Use the same procedures for the RH side and LH side.

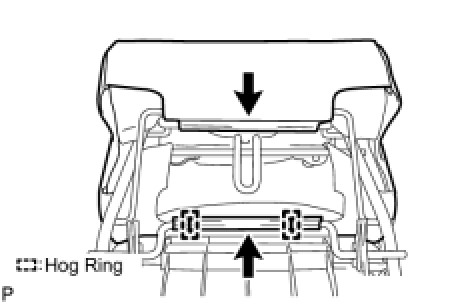

9. REMOVE CENTER SEAT BACK COVER SUB-ASSEMBLY

(a) Remove the 2 hog rings.





(b) Disengage the hooks and remove the center seat back cover sub-assembly.

10. REMOVE CENTER SEAT ARMREST PLATE INNER

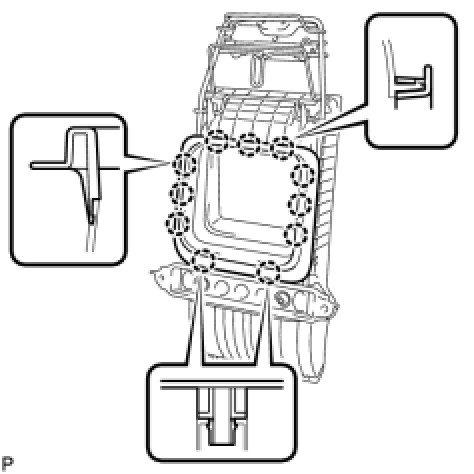

(a) Disengage the 11 claws and then remove the center seat armrest plate inner.





11. REMOVE REAR SEAT CENTER ARMREST BOX ASSEMBLY

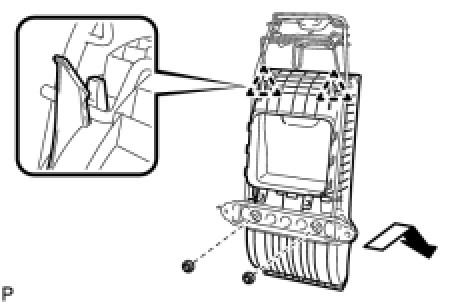

(a) Remove the 2 nuts.





(b) Disengage the 2 claws and then remove the rear seat center armrest box assembly.

12. REMOVE REAR DOOR SCUFF PLATE LH Removal

13. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH

14. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY

(a) Remove the bolt.





(b) Disengage the 2 clips and the claw and then separate the reclining remote control lever sub-assembly.

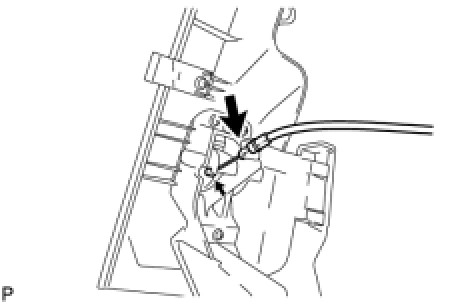

(c) Separate the rear seat reclining control cable and remove the reclining remote control lever sub-assembly.

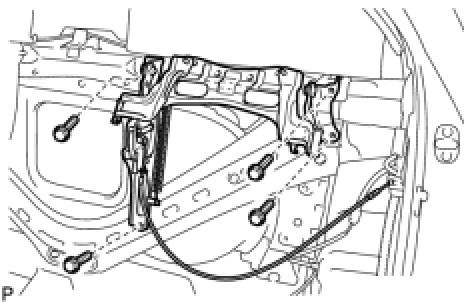

15. REMOVE REAR SEAT RECLINING ADJUSTER ASSEMBLY

(a) Remove the 4 bolts and rear seat reclining adjuster assembly.
