Installation





LIGHTING: HEADLIGHT ASSEMBLY: INSTALLATION

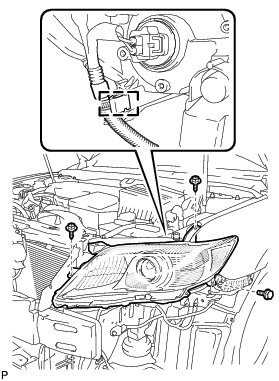

1. INSTALL HEADLIGHT ASSEMBLY

(a) Connect each connector.

(b) Engage the clamp.





(c) Install the headlight assembly with the bolt and 2 screws.

Torque : 3.6 Nm (37 kgf-cm, 32 in-lbf)

2. INSTALL FRONT BUMPER ASSEMBLY Installation

3. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation

4. PREPARE VEHICLE FOR HEADLIGHT AIM ADJUSTMENT Adjustments

5. PREPARE FOR HEADLIGHT AIMING (Using a headlight aim test machine) Adjustments

6. PREPARE FOR HEADLIGHT AIMING (Using a Screen) Adjustments

7. INSPECT HEADLIGHT AIMING Adjustments

8. ADJUST HEADLIGHT AIMING Adjustments

9. PREPARE VEHICLE FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) Adjustments

10. PREPARE FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

11. INSPECT FOG LIGHT AIMING (w/ Fog Light) Adjustments

12. ADJUST FOG LIGHT AIMING (w/ Fog Light) Adjustments
