B2780

ENGINE IMMOBILISER: ENGINE IMMOBILISER SYSTEM (w/o Smart Key System): B2780: Push Switch / Key Unlock Warning Switch Malfunction
B2780 - Push Switch / Key Unlock Warning Switch Malfunction

DESCRIPTION

This DTC will be output if the transponder key ECU assembly does not detect that the unlock warning switch is ON even when the ignition switch is ON. Under normal conditions, the unlock warning switch assembly is ON when the ignition switch is ON.

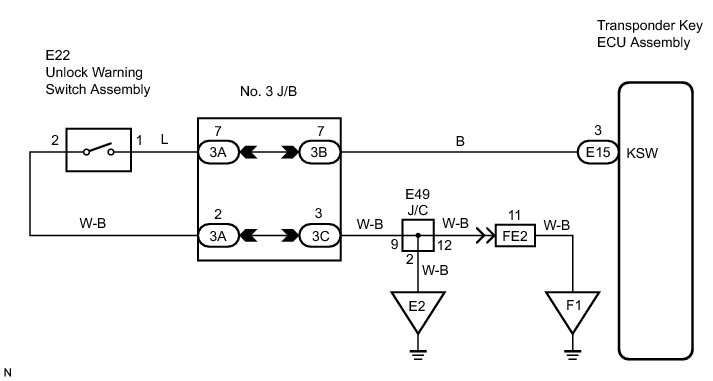

WIRING DIAGRAM





INSPECTION PROCEDURE

NOTICE:
If the transponder key ECU assembly is replaced, register the key and ECU communication ID Engine Immobiliser System (W/O Smart Key System).

PROCEDURE

1. READ VALUE USING TECHSTREAM

(a) Connect Techstream to the DLC3.

(b) Turn the ignition switch to the ON position.

(c) Turn the tester on.

(d) Enter the following menus: Body Electrical / Immobiliser / Data List.

(e) Read the Data List according to the display on the tester.

Immobiliser:





OK:

ON (Key is in ignition key cylinder) appears on the screen.

OK -- REPAIR OR REPLACE HARNESS OR CONNECTOR
NG -- Continue to next step.

2. INSPECT UNLOCK WARNING SWITCH ASSEMBLY

(a) Remove the unlock warning switch assembly Removal.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPLACE UNLOCK WARNING SWITCH ASSEMBLY
OK -- Continue to next step.

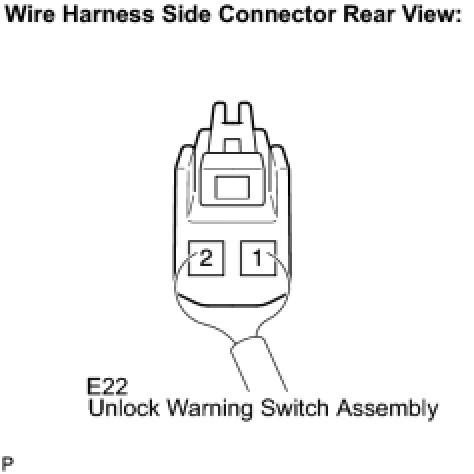

3. CHECK HARNESS AND CONNECTOR (UNLOCK WARNING SWITCH - BODY GROUND)

(a) Measure the resistance according to the value(s) in the table below.





Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

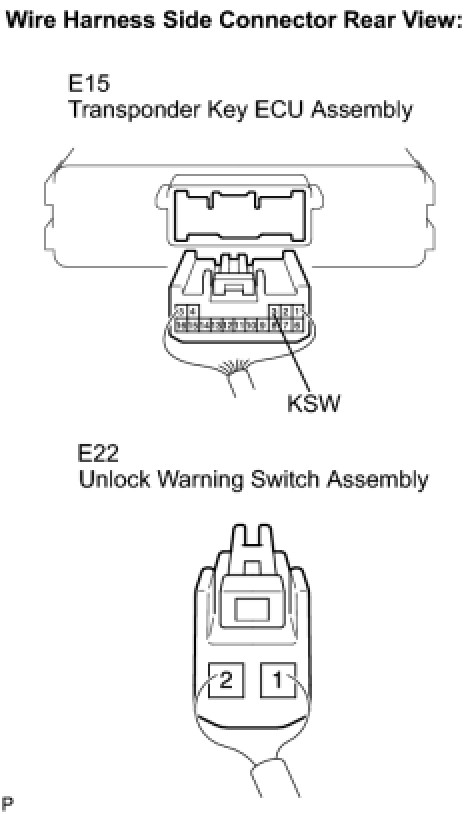

4. CHECK HARNESS AND CONNECTOR (TRANSPONDER KEY ECU - UNLOCK WARNING SWITCH)

(a) Disconnect the E15 ECU connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR

OK -- REPLACE TRANSPONDER KEY ECU ASSEMBLY
