Compressor Solenoid Circuit - Air Conditioning System

AIR CONDITIONING: AIR CONDITIONING SYSTEM: B1451/51: Compressor Solenoid Circuit
B1451/51 - Compressor Solenoid Circuit

DESCRIPTION

In this circuit, the compressor receives a refrigerant compression demand signal from the air conditioning amplifier.

Based on this signal, the compressor changes the amount of compressor output.

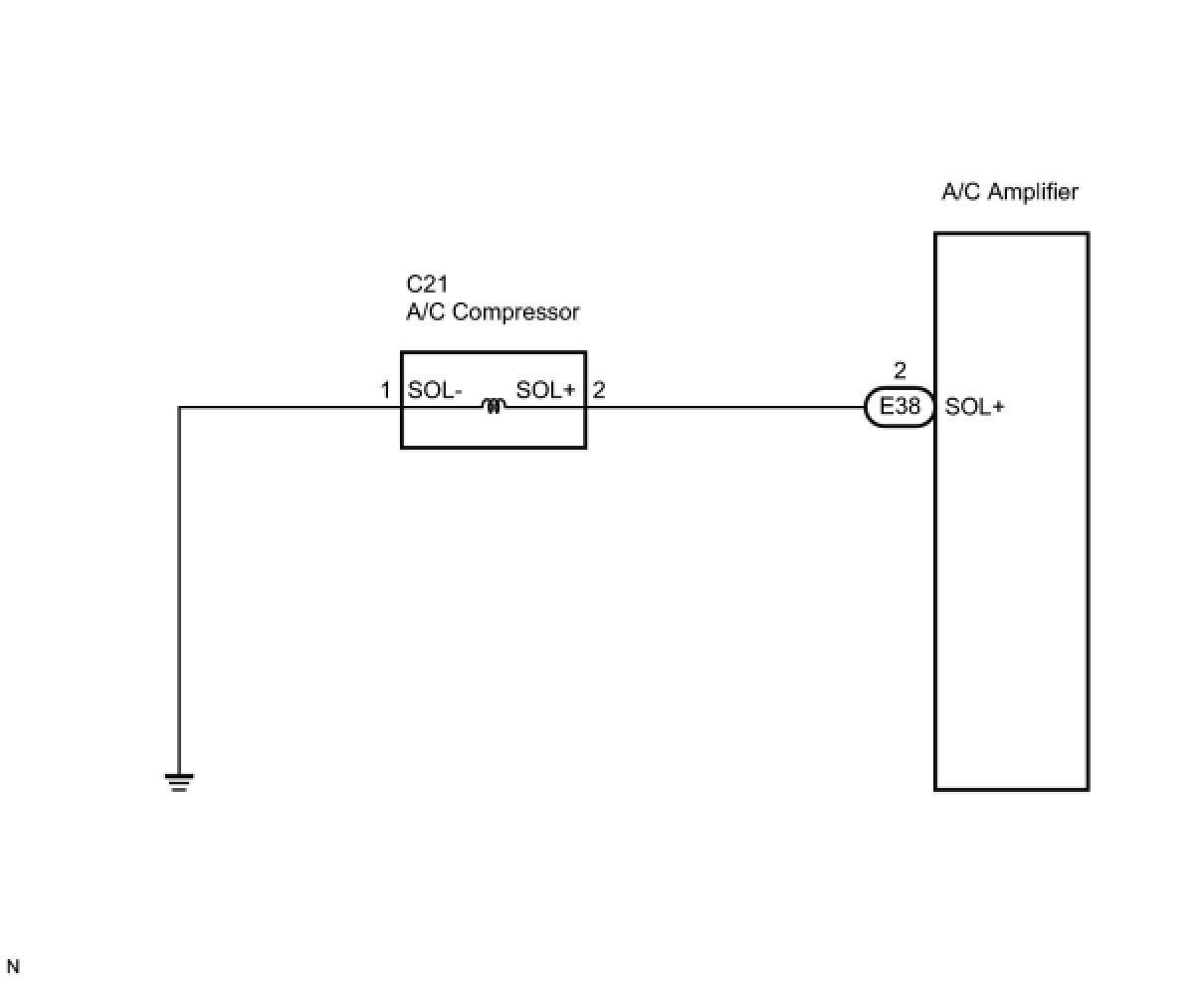

WIRING DIAGRAM

INSPECTION PROCEDURE

PROCEDURE

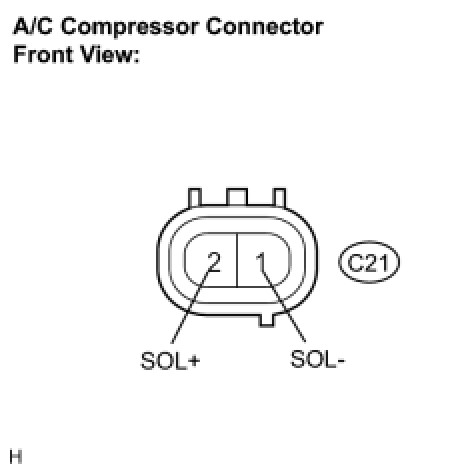

1. INSPECT A/C COMPRESSOR

(a) Disconnect the A/C compressor connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

NG -- REPLACE A/C COMPRESSOR
OK -- Continue to next step.

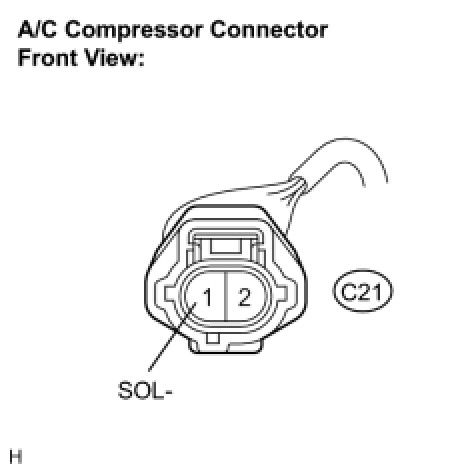

2. CHECK HARNESS AND CONNECTOR (A/C COMPRESSOR - BODY GROUND)

(a) Disconnect the A/C compressor connector.

(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:

NG -- REPAIR OR REPLACE HARNESS OR CONNECTOR
OK -- Continue to next step.

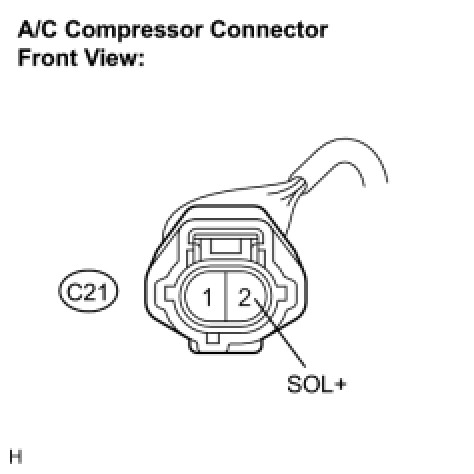

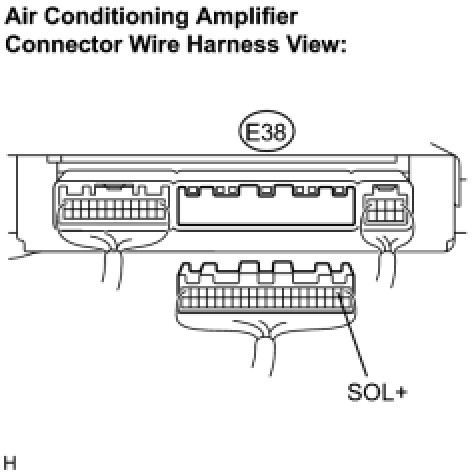

3. CHECK HARNESS AND CONNECTOR (A/C COMPRESSOR - A/C AMPLIFIER)

(a) Disconnect the A/C compressor connector.

(b) Disconnect the A/C amplifier connector.

Result:

C -- REPLACE AIR CONDITIONING AMPLIFIER

B -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE

A -- REPAIR OR REPLACE HARNESS OR CONNECTOR
