DTC 62-46

AUDIO / VISUAL: AUDIO AND VISUAL SYSTEM: 62-46,63-46: Scratched / Reversed Disc
63-46 - Scratched / Reversed Disc

DESCRIPTION





INSPECTION PROCEDURE

HINT
After the inspection is completed, clear the DTCs.

PROCEDURE

1. CHECK THAT CD IS INSERTED PROPERLY

(a) Check whether or not the CD is inserted upside down.

OK:

CD is properly inserted.

NG -- REPLACE CD AND RECHECK
OK -- Continue to next step.

2. CHECK DISC

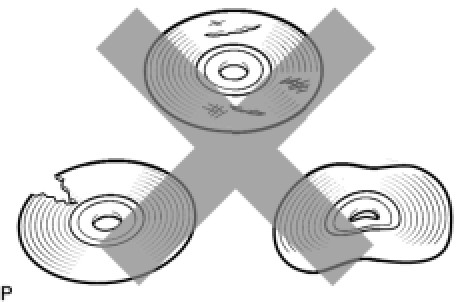

(a) Check that the disc is not deformed or cracked.





OK:

No deformation or cracks on the disc

NG -- CHANGE DISC
OK -- Continue to next step.

3. DISC CLEANING

(a) Disc cleaning





(1) If dirt is on the disc surface, wipe it clean with a soft cloth from the inside to the outside in a radial direction.

NOTICE:
Do not use a conventional record cleaner or anti-static preservative.

NEXT -- Continue to next step.

4. CLEAR DTC

(a) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

NEXT -- Continue to next step.

5. RECHECK FOR DTC

(a) Recheck for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE CD AND RECHECK

OK -- END

6. REPLACE CD AND RECHECK

(a) Replace the disc and recheck.

(1) Replace the disc with a known good one.

(2) Clear the DTCs Reading and Clearing Diagnostic Trouble Codes.

(3) Recheck for DTCs and check if the same trouble occurs again.

OK:

Malfunction disappears.

NG -- REPLACE RADIO RECEIVER Removal

OK -- END
