Installation

ENGINE HOOD / DOOR: HOOD LOCK CONTROL CABLE ASSEMBLY: INSTALLATION

1. INSTALL HOOD LOCK CONTROL CABLE ASSEMBLY

(a) Pass the hood lock control cable assembly into the engine compartment.

(b) Pass the cable through the upper radiator support.

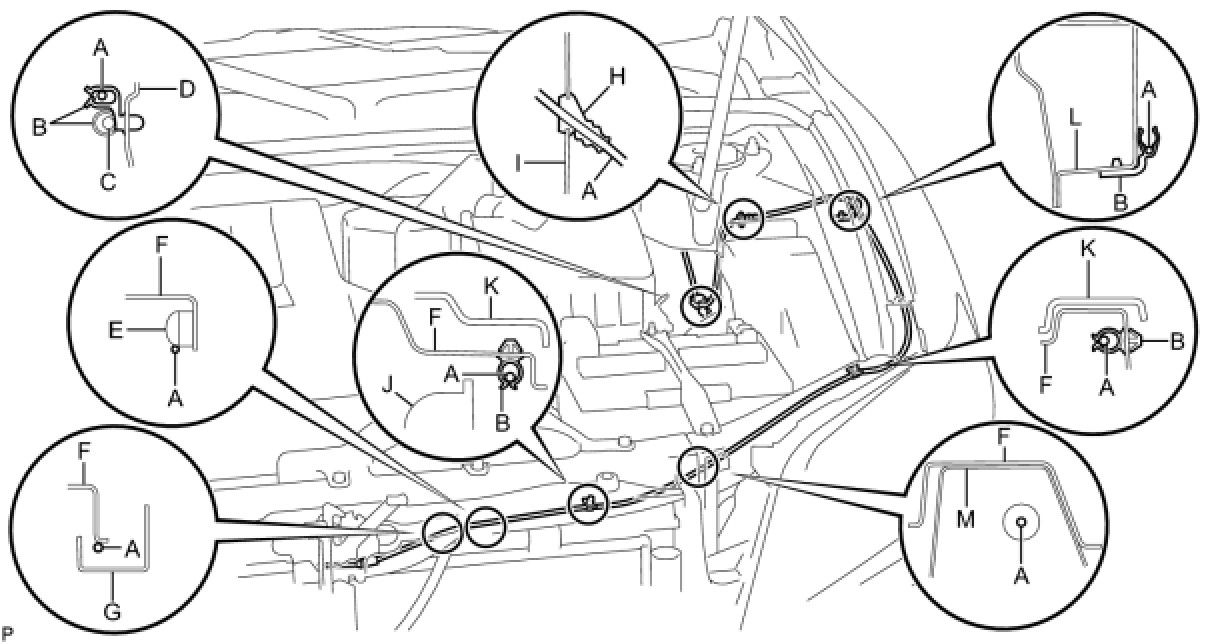

(c) Connect the clamps as shown in the illustration.

2. INSTALL HOOD LOCK CONTROL LEVER SUB-ASSEMBLY

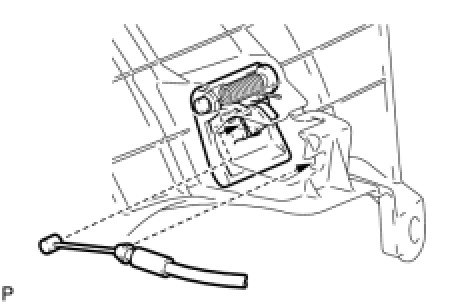

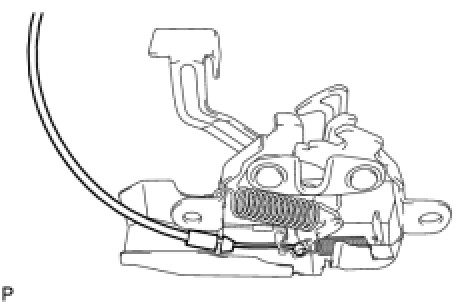

(a) Install the hood lock control lever and connect the hood lock control cable.

3. INSTALL HOOD LOCK ASSEMBLY (w/o Engine Hood Courtesy Switch)

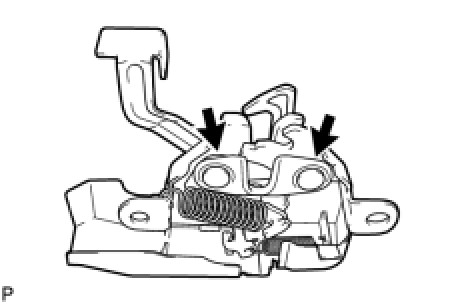

(a) Apply MP grease to the sliding areas of the lock.

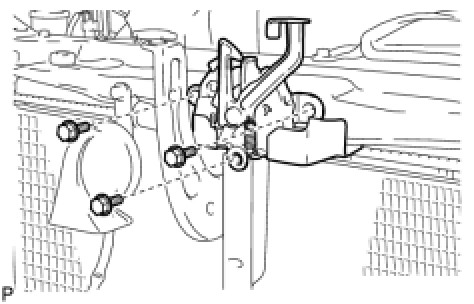

(b) Connect the hood lock control cable.

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

4. INSTALL HOOD LOCK ASSEMBLY (w/ Engine Hood Courtesy Switch)

(a) Apply MP grease to the sliding areas of the lock.

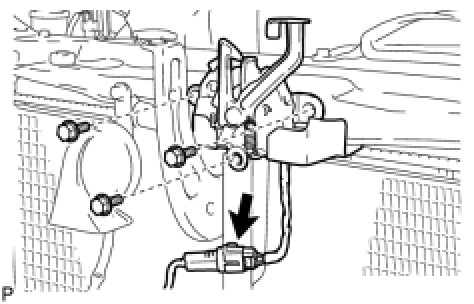

(b) Connect the hood lock control cable.

Torque : 7.5 Nm (77 kgf-cm, 66 in-lbf)

(d) Connect the connector.

5. INSTALL HIGH PITCHED HORN ASSEMBLY Installation

6. INSTALL FRONT FENDER LINER

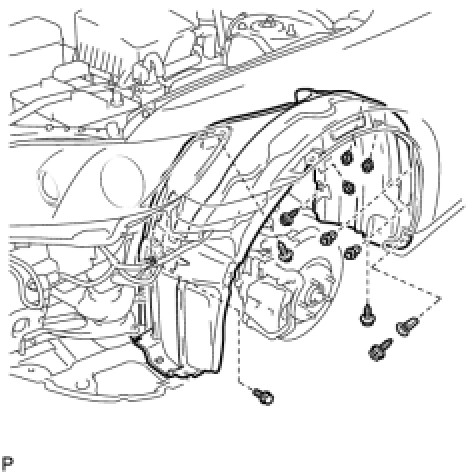

(a) Install the front fender liner with the grommet and 4 screws.

(b) Install the bolt and 5 clips.

7. INSPECT HOOD SUB-ASSEMBLY Hood

8. ADJUST HOOD SUB-ASSEMBLY Adjustments

9. INSTALL FRONT BUMPER ASSEMBLY Installation

10. INSTALL COOL AIR INTAKE DUCT SEAL (for 2GR-FE) Installation

11. INSTALL FRONT WHEEL OPENING EXTENSION PAD

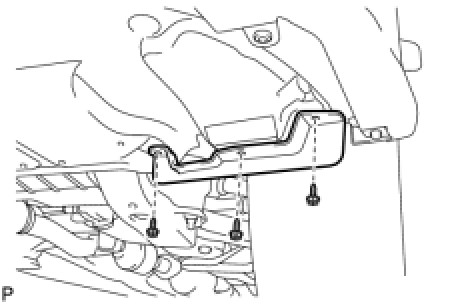

(a) Install the front wheel opening extension pad with the 3 screws.

12. INSTALL FRONT WHEEL Installation

13. VEHICLE PREPARATION FOR FOG LIGHT AIM ADJUSTMENT (w/ Fog Light) Adjustments

14. PREPARATION FOR FOG LIGHT AIMING (w/ Fog Light) Adjustments

15. FOG LIGHT AIMING INSPECTION (w/ Fog Light) Adjustments

16. FOG LIGHT AIMING ADJUSTMENT (w/ Fog Light) Adjustments
