Removal





SUPPLEMENTAL RESTRAINT SYSTEM: OCCUPANT CLASSIFICATION ECU: REMOVAL

1. PRECAUTION

CAUTION:
Be sure to read "PRECAUTION" thoroughly before servicing Airbag System (for TMC Made) for TMC made, Airbag System (except TMC Made) except TMC made).

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL (for Manual Seat)

CAUTION:
Wait for 90 seconds after disconnecting the cable to prevent airbag deployment.

3. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Manual Seat)

4. REMOVE FRONT SEAT HEADREST ASSEMBLY (for Power Seat)

5. REMOVE SEAT TRACK COVER RH (for Manual Seat) Removal

6. REMOVE SEAT TRACK COVER RH (for Power Seat) Removal

7. REMOVE INNER SEAT TRACK BRACKET COVER RH (for Manual Seat) Removal

8. REMOVE SEAT TRACK COVER LH (for Power Seat) Removal

9. REMOVE FRONT SEAT ASSEMBLY RH (for Manual Seat) Removal

10. REMOVE FRONT SEAT ASSEMBLY RH (for Power Seat) Removal

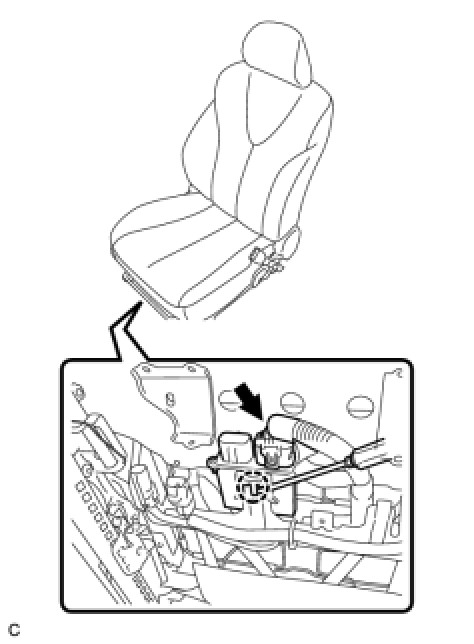

11. REMOVE OCCUPANT CLASSIFICATION ECU

(a) Disconnect the connector from the occupant classification ECU.





(b) Using a screwdriver, disengage the claw and remove the occupant classification ECU.
