U760E AUTOMATIC TRANSAXLE: DIFFERENTIAL OIL SEAL: REPLACEMENT

1. DRAIN AUTOMATIC TRANSAXLE FLUID

(a) Remove the front wheel opening extension pad LH, engine under cover LH and front fender apron seal LH.

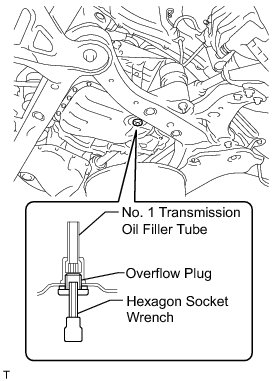

(b) Using a 6 mm hexagon socket wrench, remove the overflow plug and gasket from the automatic transaxle.

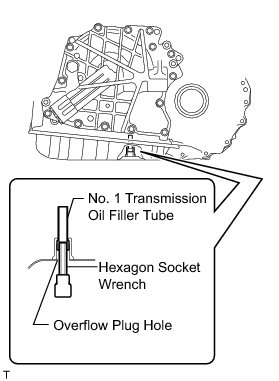

(d) Using a 6 mm hexagon socket wrench, remove the No. 1 transmission oil filler tube from the automatic transaxle.

(e) Drain automatic transaxle fluid from the automatic transaxle.

(f) Using a 6 mm hexagon socket wrench, install the No. 1 transmission oil filler tube to the automatic transaxle.

Torque : 0.8 Nm (8 kgf-cm, 7 in-lbf)

(g) Using a 6 mm hexagon socket wrench, install a new gasket and the overflow plug to the automatic transaxle.

Torque : 40 Nm (408 kgf-cm, 30 ft-lbf)

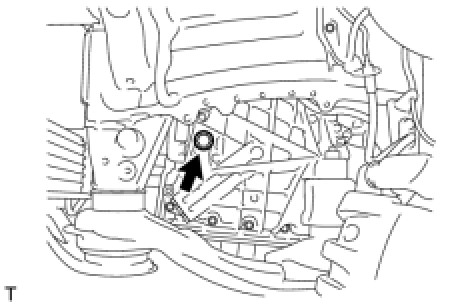

(h) Install a new gasket and the refill plug to the automatic transaxle.

Torque : 49 Nm (500 kgf-cm, 36 ft-lbf)

2. REMOVE FRONT DRIVE SHAFT ASSEMBLY

HINT
for TMC Made: Removal

for TMMK Made: Removal

3. REMOVE TRANSAXLE CASE OIL SEAL

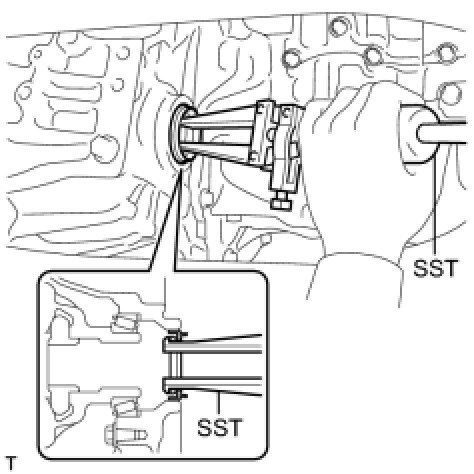

(a) Using SST, tap out the transaxle case oil seal.

SST : 09308-00010

4. REMOVE FRONT TRANSAXLE CASE OIL SEAL

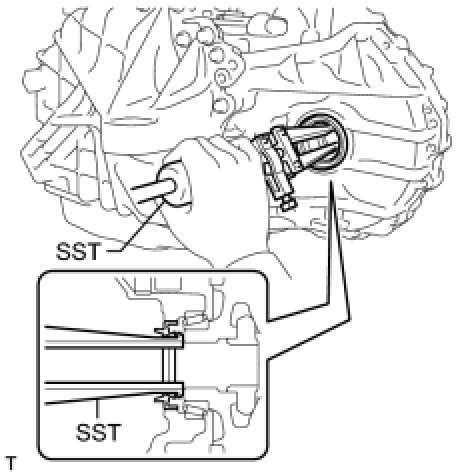

(a) Using SST, tap out the front transaxle case oil seal.

SST : 09308-00010

5. INSTALL FRONT TRANSAXLE CASE OIL SEAL

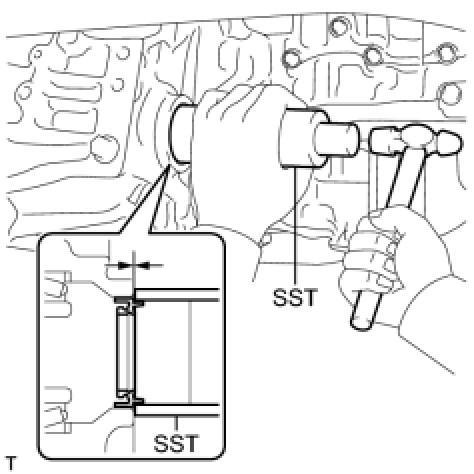

(a) Using SST and a hammer, tap in a new front transaxle case oil seal.

SST : 09316-60011

SST : 09950-70010

09951-07100

Oil seal driven in depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:
Check that the oil seal is installed in the correct direction.

(b) Coat the lip of the front transaxle case oil seal with MP grease.

6. INSTALL TRANSAXLE CASE OIL SEAL

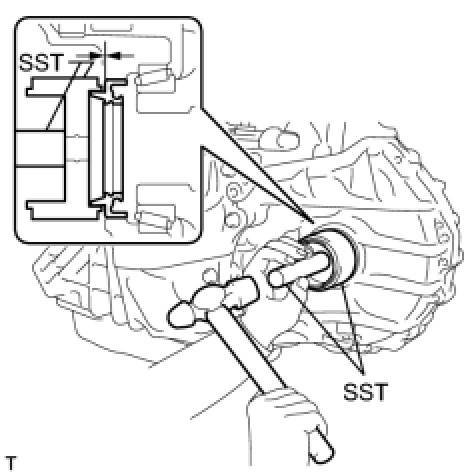

(a) Using SST and a hammer, tap in a new transaxle case oil seal.

SST : 09316-60011

09316-00011

Oil seal driven in depth:

-0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

NOTICE:
Check that the oil seal is installed in the correct direction.

(b) Coat the lip of the transaxle case oil seal with MP grease.

7. INSTALL FRONT DRIVE SHAFT ASSEMBLY

HINT
for TMC Made: Installation

for TMMK Made: Installation

8. ADD AUTOMATIC TRANSAXLE FLUID

HINT
Procedures
