Reassembly





U760E AUTOMATIC TRANSAXLE: OIL PUMP: REASSEMBLY

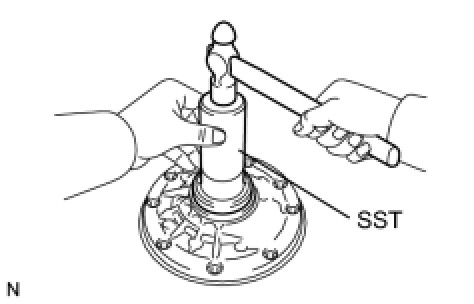

1. INSTALL FRONT OIL PUMP OIL SEAL

(a) Using SST and a hammer, install a new front oil pump oil seal to the front oil pump body sub-assembly.





SST : 09350-32014

09351-32140

NOTICE:
The seal end should be level with the outer edge of the oil pump.

(b) Coat the lip of the oil seal with MP grease.

2. INSTALL FRONT OIL PUMP BODY O-RING

(a) Coat a new O-ring with ATF and install it to the front oil pump body sub-assembly.





NOTICE:
Ensure that the O-ring is not twisted.

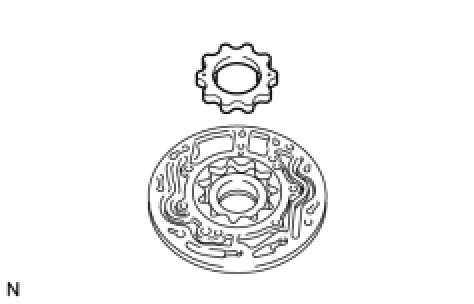

3. INSTALL FRONT OIL PUMP DRIVEN GEAR

(a) Coat the front oil pump driven gear with ATF and install it to the front oil pump body sub-assembly with the marked side up.

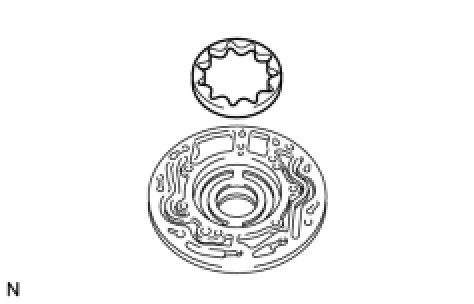

4. INSTALL FRONT OIL PUMP DRIVE GEAR

(a) Coat the front oil pump drive gear with ATF, and install it to the front oil pump body sub-assembly with the marked side up.

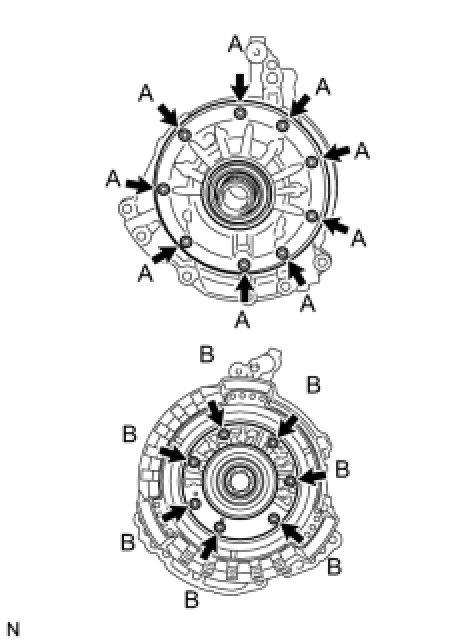

5. INSTALL STATOR SHAFT ASSEMBLY

(a) Align each knock pin of the stator shaft assembly with the holes in the front oil pump body assembly and install the stator shaft assembly to the front oil pump body sub-assembly with the 16 bolts.





(b) Using a "TORX" socket (T30), install the 16 bolts.

Torque : 9.3 Nm (95 kgf-cm, 82 in-lbf)





6. INSPECT FRONT OIL PUMP AND GEAR BODY SUB-ASSEMBLY Oil Pump
