Removal

AUDIO / VISUAL: AMPLIFIER ANTENNA: REMOVAL

1. REMOVE REAR SEAT HEADREST ASSEMBLY

2. REMOVE REAR CENTER SEAT HEADREST ASSEMBLY

3. REMOVE REAR SEAT CUSHION ASSEMBLY Removal

4. REMOVE REAR SEAT BACK ASSEMBLY (for Fixed Seat Type) Removal

5. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Removal

6. REMOVE REAR SIDE SEAT BACK ASSEMBLY RH (for Fold Down Seat Type) Removal

7. REMOVE REAR SEAT BACK COVER (for Reclining Seat Type) Removal

8. REMOVE SEPARATE TYPE REAR SEAT BACK ASSEMBLY RH (for Reclining Seat Type) Removal

9. REMOVE REAR DOOR SCUFF PLATE RH Removal

10. DISCONNECT REAR DOOR OPENING TRIM WEATHERSTRIP RH

11. REMOVE RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH (for Reclining Seat Type)

12. REMOVE ROOF SIDE INNER GARNISH RH

HINT
Use the same procedures for the RH side and the LH side Removal.

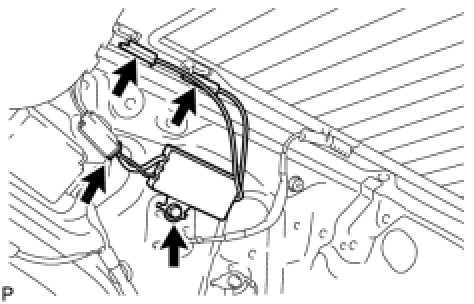

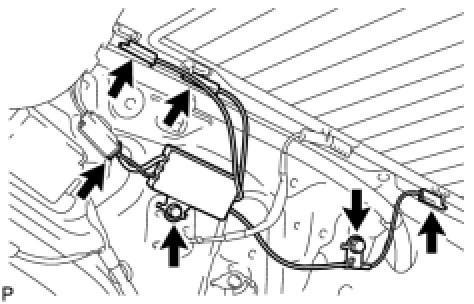

13. REMOVE AMPLIFIER ANTENNA ASSEMBLY

(a) Disconnect each connector.

(b) Standard audio system:

(1) Remove the bolt and amplifier antenna assembly.
