Reassembly

EXTERIOR: REAR BUMPER: REASSEMBLY

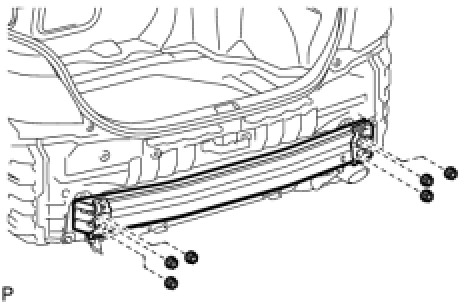

1. INSTALL REAR BUMPER REINFORCEMENT SUB-ASSEMBLY

(a) Install the rear bumper reinforcement sub-assembly with the 6 nuts.





Torque : 68 Nm (693 kgf-cm, 50 ft-lbf)

2. INSTALL REAR BUMPER BAR

(a) Install the rear bumper bar on the rear bumper energy absorber.

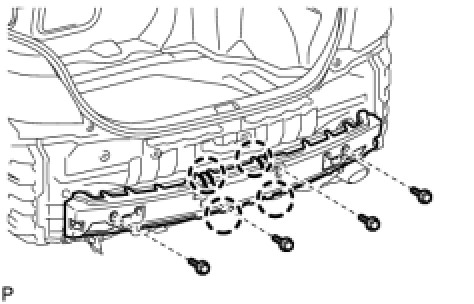

3. INSTALL REAR BUMPER ENERGY ABSORBER

(a) Engage the 4 claws and install the rear bumper energy absorber.





(b) Install the 4 bolts.

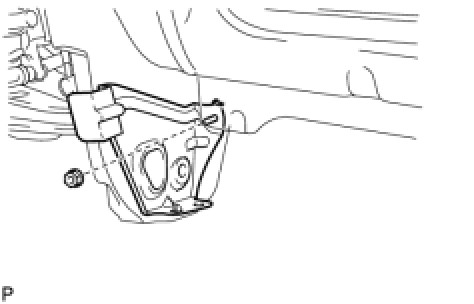

4. INSTALL WHEEL HOUSE REINFORCEMENT LH

(a) Install the wheel house reinforcement LH with the nut.





5. INSTALL WHEEL HOUSE REINFORCEMENT RH

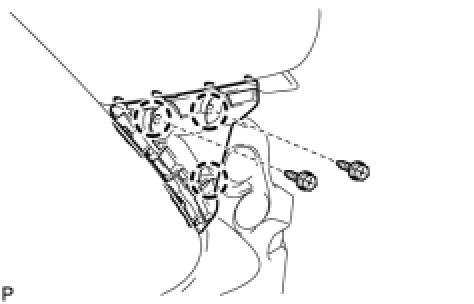

6. INSTALL REAR BUMPER SIDE RETAINER LH

(a) Engage the 3 claws and install the rear bumper side retainer LH.





(b) Install the 2 screws.

7. INSTALL REAR BUMPER SIDE RETAINER RH

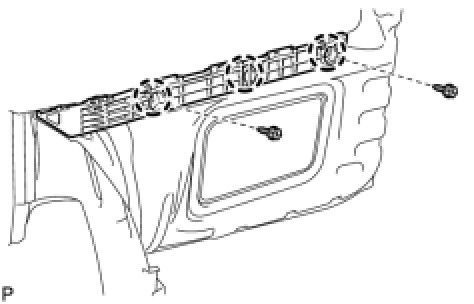

8. INSTALL REAR BUMPER SIDE SUPPORT LH

(a) Engage the 3 claws and install the rear bumper side support LH.





(b) Install the 2 screws.

9. INSTALL REAR BUMPER SIDE SUPPORT RH

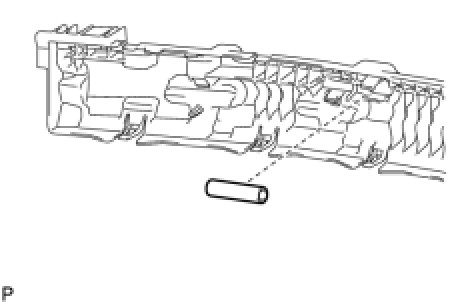

10. INSTALL REAR BUMPER PAD

(a) Apply new double-sided tape to the rear bumper pad.





(b) Remove the release paper from the rear bumper pad.

(c) Install the rear bumper pad.

HINT
Use the same procedures for the RH side and LH side.

11. INSTALL REAR BUMPER PLATE LH

12. INSTALL REAR BUMPER PLATE RH

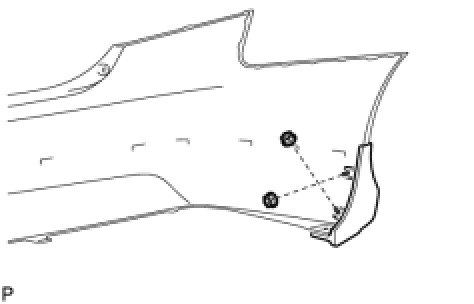

13. INSTALL REAR BUMPER EXTENSION LH (w/ Rear Lower Spoiler)

(a) Install the rear bumper extension LH with the 2 nuts.





14. INSTALL REAR BUMPER EXTENSION RH (w/ Rear Lower Spoiler)

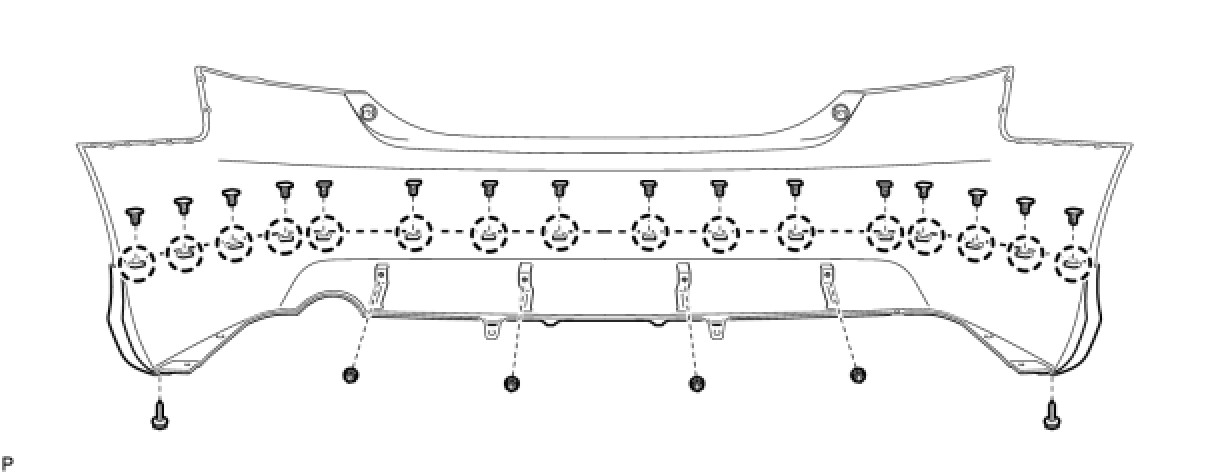

15. INSTALL REAR LOWER SPOILER (w/ Rear Lower Spoiler)

(a) Engage the 16 claws and install the rear lower spoiler.





(b) Install the 16 clips, 4 nuts and 2 screws.
